Deal with waste communication wires, automobile wires, computer wires, telephone wires, household electrical wires and other oil-free wires.

Mixed wire copper rice machine
Mixed wire copper rice machine
Mixed wire copper rice machine
Mixed wire copper rice machine

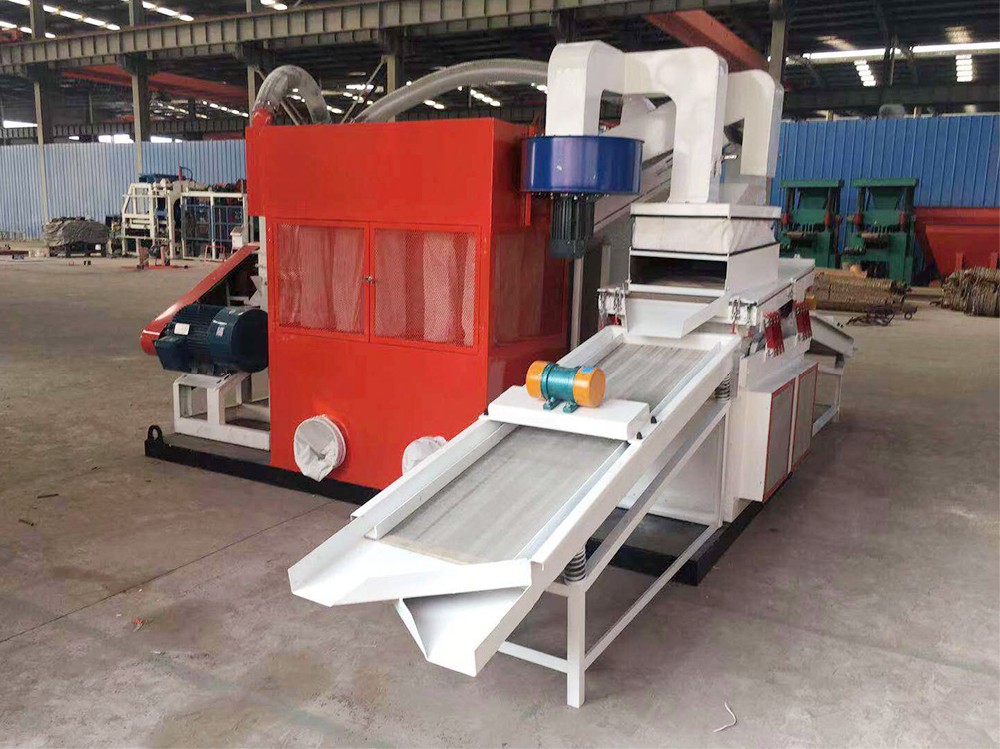

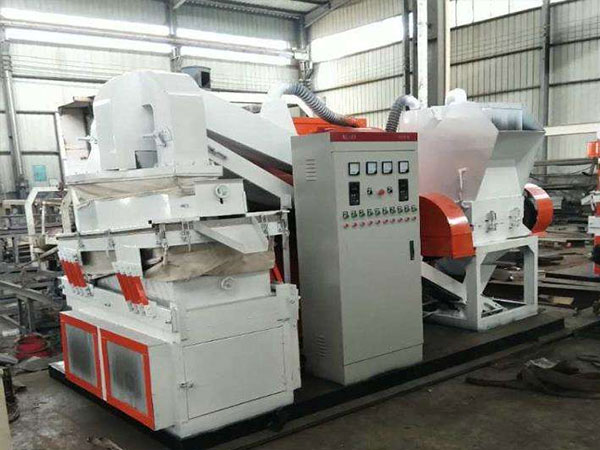

About of Mixed wire copper rice machine

  Mixed wire copper rice machine is specialized in processing automobile cable, communication cable and other Φ20mm below each file cable and stripping machine is not suitable for processing of various mixed wire cable, after crushing processing, vibration screen separation, vibration separation. It can completely separate copper and plastic, and achieve the purpose of comprehensive utilization, with high economic benefits. And no dust and no secondary pollution. In addition, the equipment is an integrated structure, easy to install and debug, transport is also convenient, customers can be purchased after the power supply can be produced, stable performance.







Product Advantage

  Dry copper rice machine for a variety of wire and cable, household appliance lines, communication lines, computer lines and other wire stripping machine should not be processed scrap wire, size lines can be broken at the same time without classification, to achieve a variety of scrap wire metal and plastic dry separation and recycling. It has large production capacity, low power consumption, high sorting rate, one feeding, multi-machine cooperation
(crushing, conveying feeding, vacuuming and dry separation), automatic intelligent control, only one feeding can be produced, and advanced dust collection device. It not only improves the quality of recycled copper, but also
recycles plastics and solves environmental pollution at the same time.



How is works

  Two different densities of substances under the action of the wind, through a certain Angle of the screen surface for amplitude movement generated by the deflection, so that the density of the copper wire attached to the screen to the copper mouth forward, the density of the small plastic skin floating on the copper wire to the mouth, so as to achieve the purpose of copper plastic separation. The clean rate of separation is proportional to the diameter of a single copper wire, the thicker the diameter of a single copper wire and the cleaner the separation of plastic, the greater the unit time output, and the finer the diameter of a single copper wire and the worse the separation effect of plastic.



Product Specifications
*Note: Technical data are subject to change without prior notice.

 Model

(kg/h)

Power (kw)

 Fan (kw)

 Vibration motor (kw)

600

 400-500

 30

 3.5

0.75

800

 600-800

 45

 7.5

1.5

1000

800-1000

 55

 7.5

 1.5
